CanMV K230

What is CanMV?

The CanMV open source project is officially created and maintained by Canaan. It is an open source project that ported MicroPython to Canaan's edge computing AI chip K210/K230 (a 64-bit dual-core RISC-V with hardware FPU and convolution accelerator). The project aims to create a low-cost, scalable, Python-driven AI artificial intelligence module.

In other words, if you are familiar with Micropython or Python, you can complete a large number of machine vision, machine hearing and deep learning applications through the CanMV project in a very short time.

CanMV K230 Development Board

01Studio CanMV K230 AI development board is based on Canaan Technology's edge computing chip K230 (RSIC-V architecture, 64-bit dual-core) and the CanMV open source project.

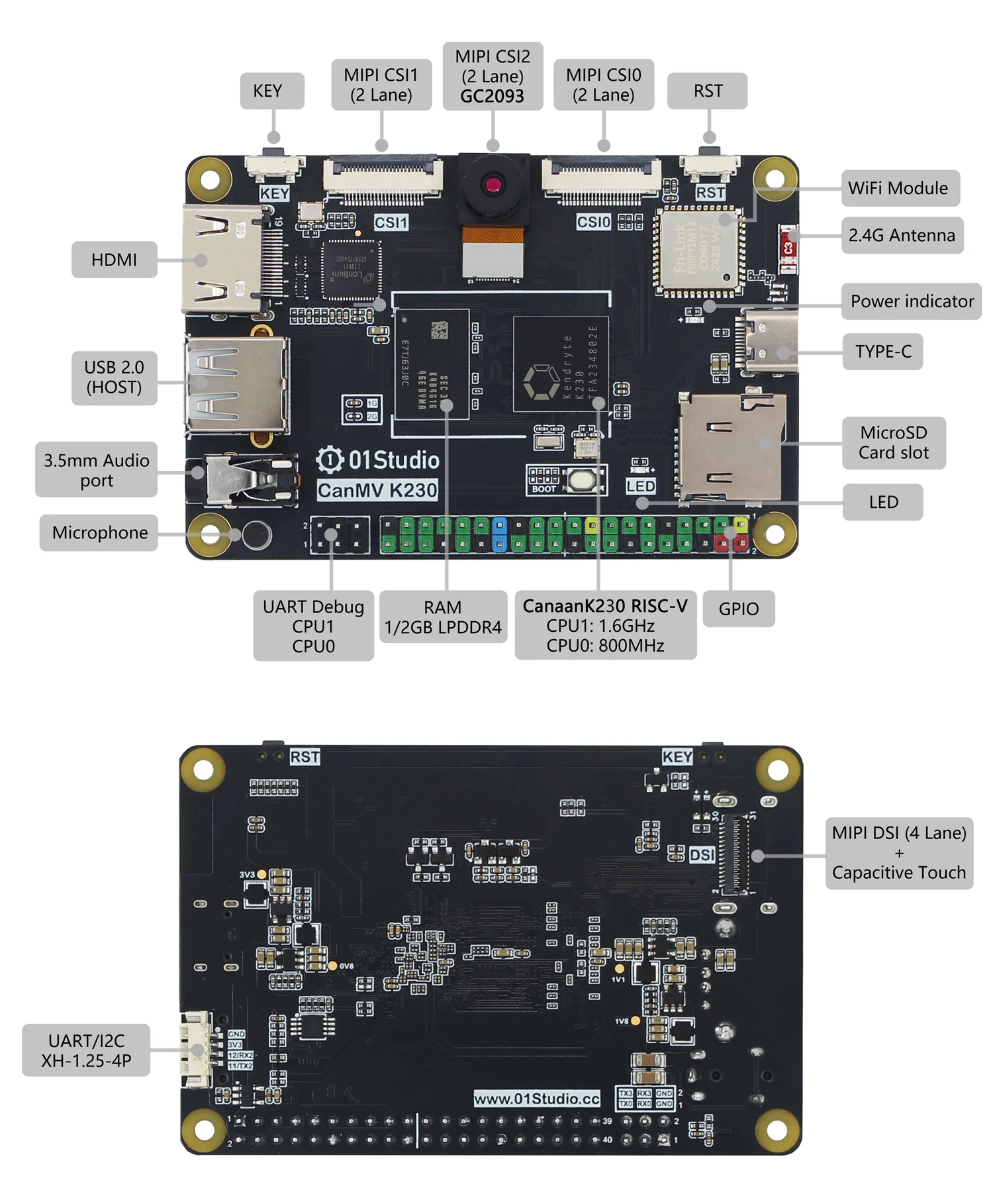

Hardware

Product Parameters

Product Parameters
K230	● CPU1: RISC-V , 1.6GHz, Support RVV 1.0 ● CPU0: RISC-V , 800MHz
Neural Network	KPU（6TOPS Equivalence），Support INT8 & INT16
RAM	● 1GBytes（LPDDR4） ● 2GBytes（LPDDR4）
Storage	MicroSD（512G max）
Camera	● GC2093(Standard) / OV5647 ● Support 3 interfaces（3 x 2 lane CSI）
Display	● MIPI LCD（1x4 lane DSI）, up to 1920x1080 ● HDMI Display, up to1920x1080 ● CanMV IDE, up to 1920x1080
Network	● 2.4G WiFi（onboard antenna） ● Ethernet（An external USB to Ethernet cable is required）
Audio Output	3.5mm Audio port (dual channel)
Audio Input	Microphone
USB	x1 USB 2.0 HOST
KEY	x2 （Programmable Key，Reset Key）
LED	x2 （Programmable LED，Power LED）
GPIO	40Pin GPIO Pin Header（compatible with Raspberry Pi）
UART/I2C	XH-1.25mm-4P
UART Debug	● CPU1（UART3） ● CPU0（UART0）
TYPE-C	IDE connection development,code debugging,filetransferpowersupplyall-in-one
Power Supply	5V @ 1A

Appearance Parameters
Size	85 x 56 x 15mm (PCB Size)
Weight	31g

GPIO PinOut

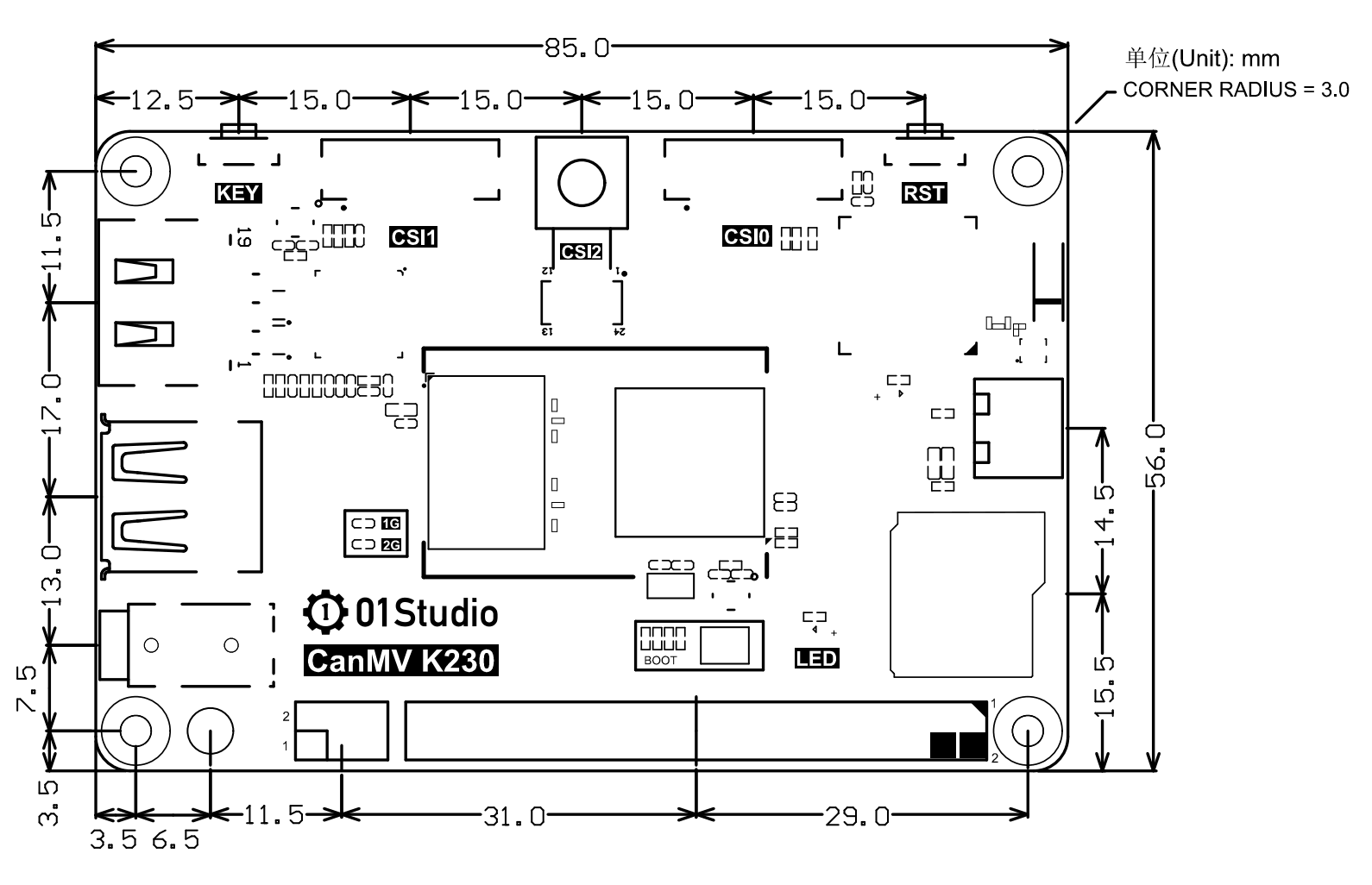

Size

CanMV K230 mini Development Board

CanMV K230 mini is a streamlined version of CanMV K230 hardware with a smaller size and fully universal images and codes.

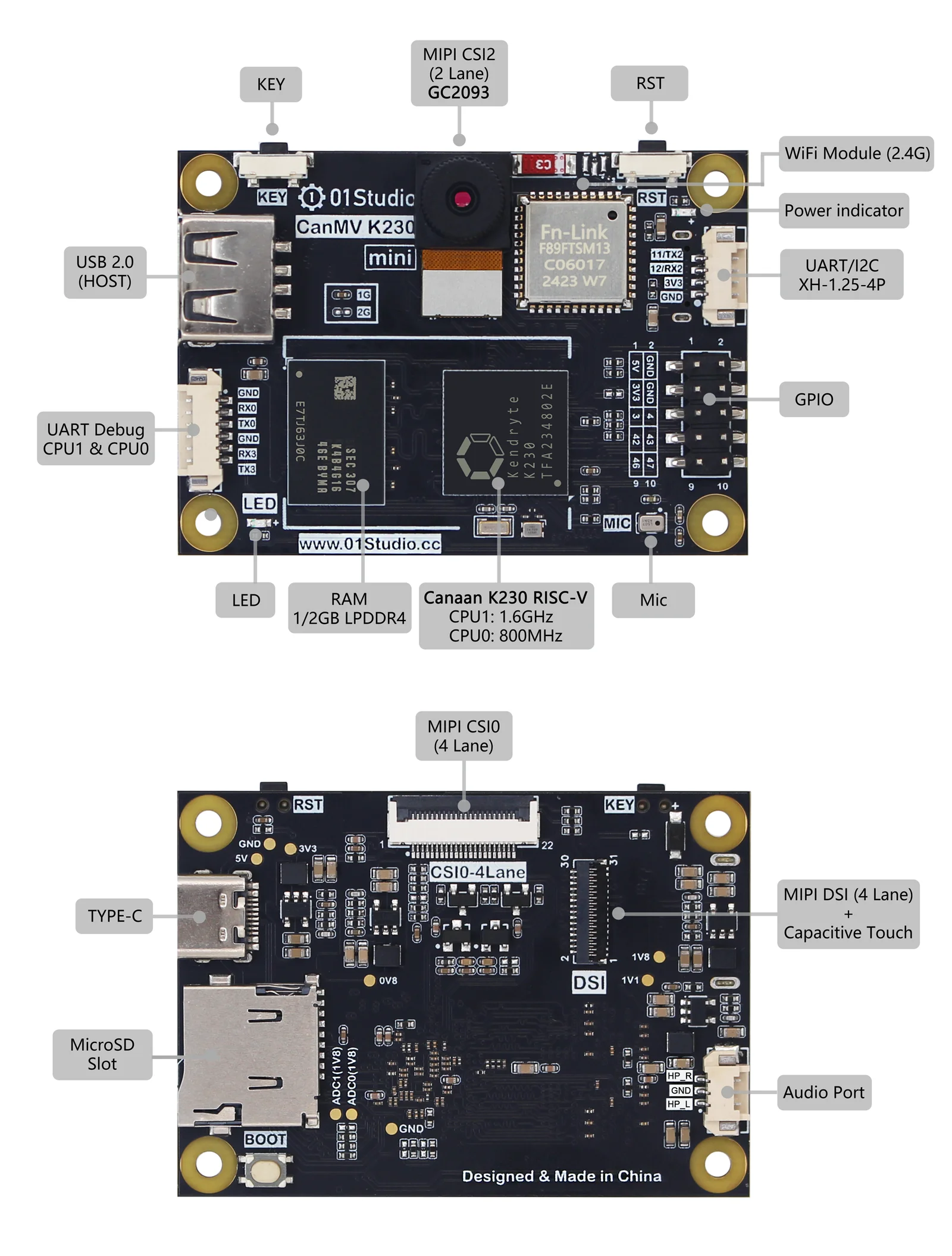

Hardware

Product Parameters

Product Parameters
K230	● CPU1: RISC-V , 1.6GHz, Support RVV 1.0 ● CPU0: RISC-V , 800MHz
Neural Network	KPU（6TOPS Equivalence），Support INT8 & INT16
RAM (Optional)	● 1GBytes（LPDDR4） ● 2GBytes（LPDDR4）
Storage	● MicroSD（512G max） ● SD NAND (reserved pad, located below the SD card slot, can be soldered by yourself)
Camera	● GC2093(Standard) / OV5647 ● Support 2 interfaces CSI（1 x 2lane + 1 x 4lane）
Display	● MIPI LCD（1x4 lane DSI）, up to 1920x1080 ● HDMI Display, up to1920x1080 (Need to use with adapter plate) ● CanMV IDE, up to 1920x1080
Network	● 2.4G WiFi（onboard antenna） ● Ethernet（An external USB to Ethernet cable is required）
Audio Output	xh-1.25mm-3P Audio port (dual channel)
Audio Input	Microphone
USB	x1 USB 2.0 HOST
KEY	x2 （Programmable Key，Reset Key）
LED	x2 （Programmable LED，Power LED）
GPIO	2x5P 2.54mm Pin Header
UART/I2C	XH-1.25mm-4P
UART Debug	● CPU1（UART3） ● CPU0（UART0）
TYPE-C	IDE connection development,code debugging,filetransferpowersupplyall-in-one
Power Supply	5V @ 1A

Appearance Parameters
Size	● 60.3 x 42.7 x 17.6mm (PCB Size) ● 64.3 x 46.7 x 17.6 mm (including case)
Weight	● 16g ● 40g (including case)

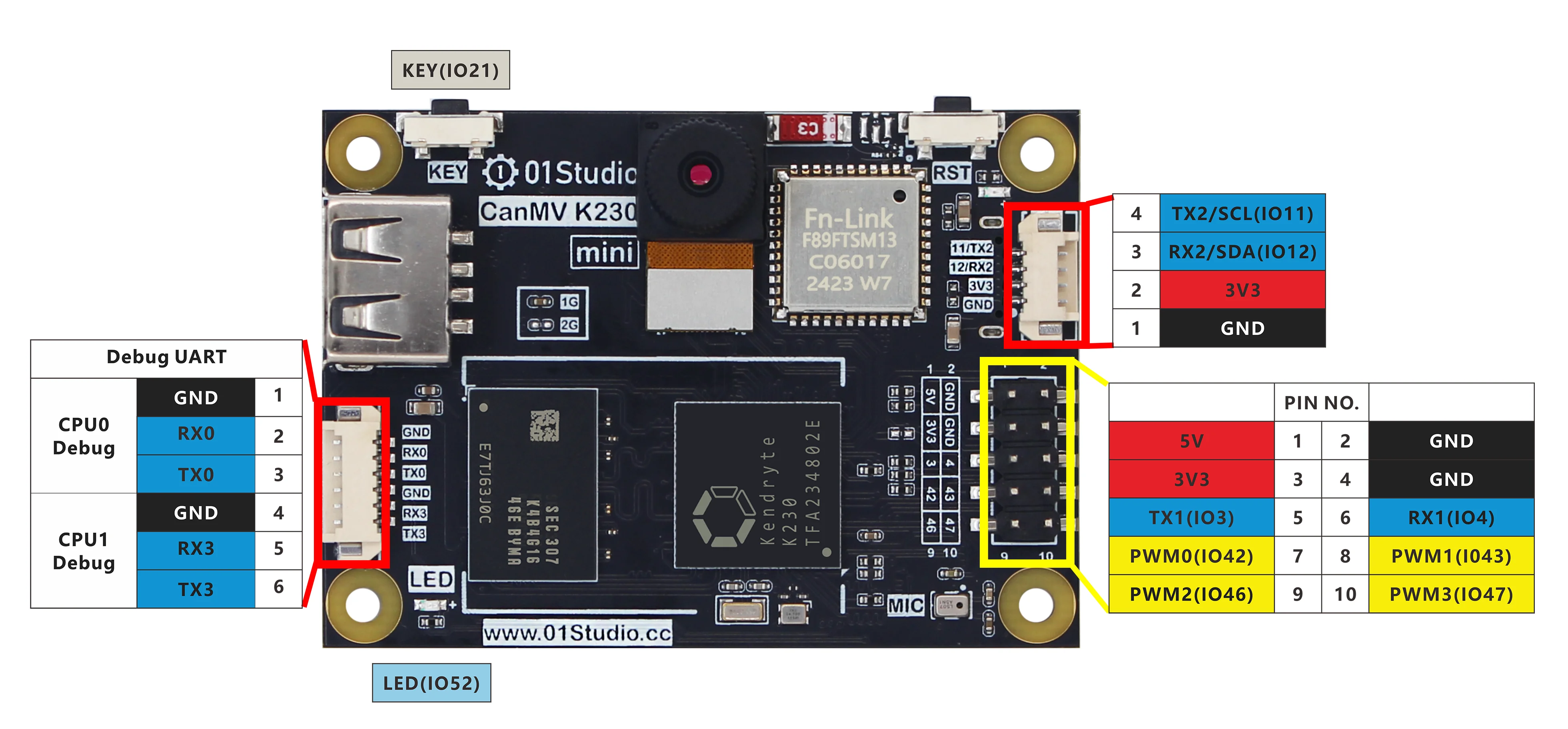

GPIO PinOut

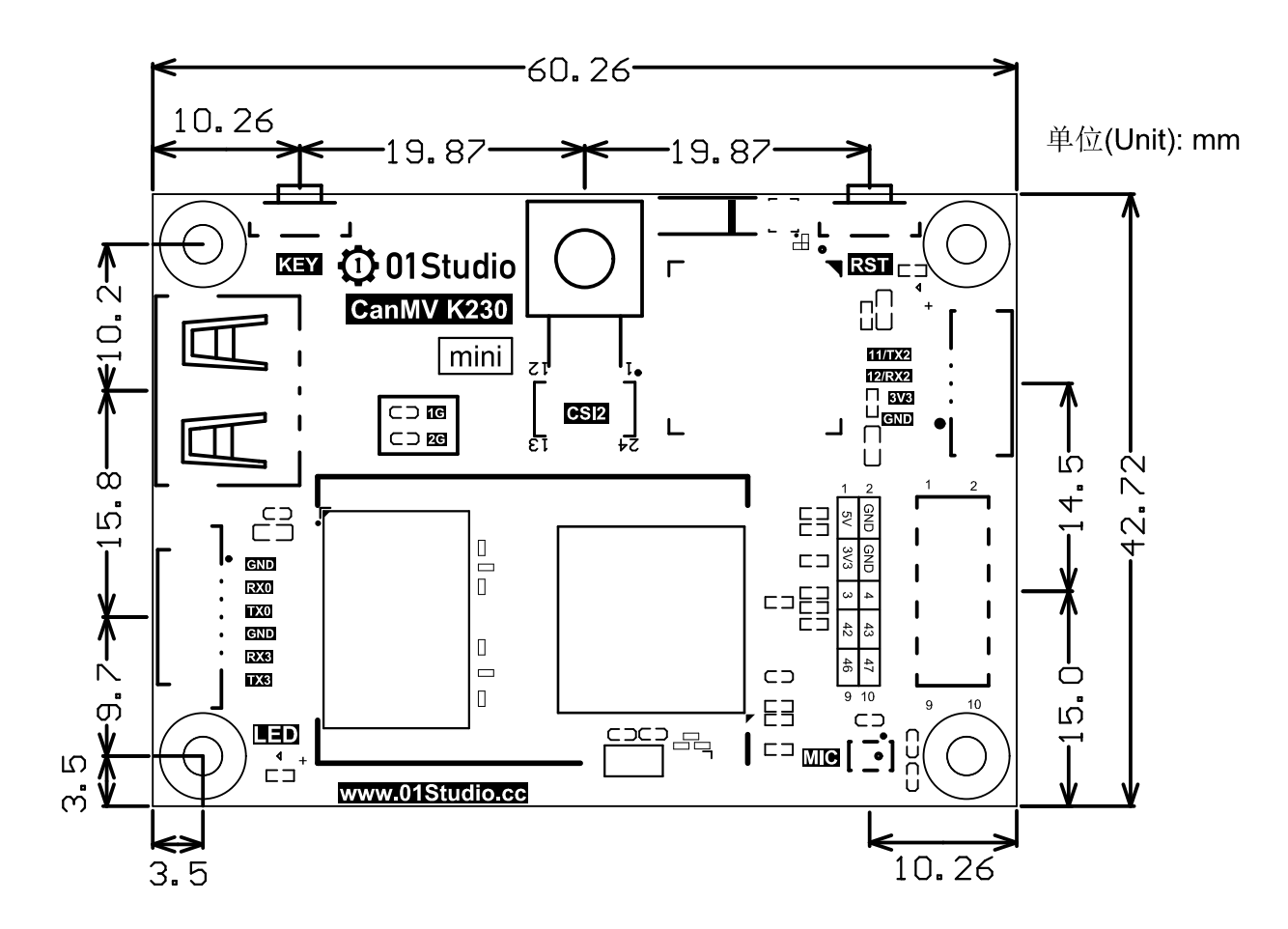

Bare board size

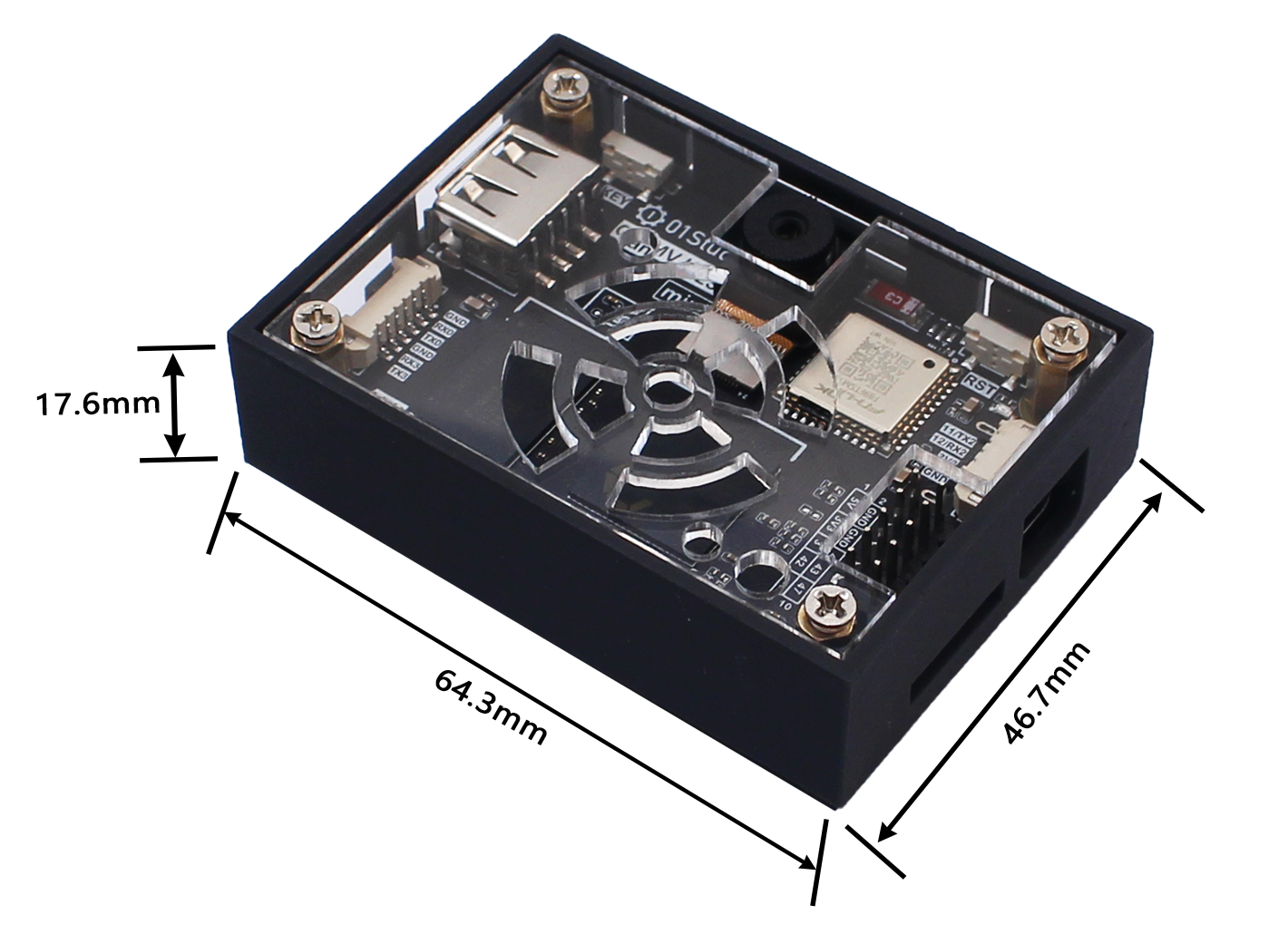

Including shell size

CM-K230 Core Module

CM-K230 is the core board for stamp-hole encapsulation.Click to Buy>>

Hardware

PinOUT

Pin	Name	Function	Pin	Name	Function
1	GND	Power GND	71	GND	Power GND
2	GND	Power GND	72	CSI1_D2_N	CSI1/Camera
3	GND	Power GND	73	CSI1_D2_P	CSI1/Camera
4	VIN_5V	Power In/5V	74	CSI1_CLK_P	CSI1/Camera
5	VIN_5V	Power In/5V	75	CSI1_CLK_N	CSI1/Camera
6	VIN_5V	Power In/5V	76	CSI1_D3_P	CSI1/Camera
7	VOUT_3V3	Power Out/3V3/I(max)=300mA	77	CSI1_D3_N	CSI1/Camera
8	VOUT_1V8	Power Out/1V8/I(max)=100mA	78	GND	Power GND
9	GPIO18	OSPI_D2/QSPI1_CS2/QSPI0_D2	79	DSI_D3_P	Display
10	GPIO19	OSPI_D3/QSPI1_CS1/QSPI0_D3	80	DSI_D3_N	Display
11	GPIO20	OSPI_D4/QSPI1_CS0/PULSE_CNTR0	81	DSI_D2_N	Display
12	GPIO21	OSPI_D5/QSPI1_CLK/PULSE_CNTR1	82	DSI_D2_P	Display
13	GPIO22	OSPI_D6/QSPI1_D0/PULSE_CNTR2	83	DSI_CLK_P	Display
14	GPIO23	OSPI_D7/QSPI1_D1/PULSE_CNTR3	84	DSI_CLK_N	Display
15	GPIO24	OSPI_DQS/QSPI1_D2/PULSE_CNTR4	85	DSI_D0_N	Display
16	GPIO25	PWM5/QSPI1_D3/PULSE_CNTR5	86	DSI_D0_P	Display
17	TFCARD_D0	MMC0_D0	87	DSI_D1_P	Display
18	TFCARD_D1	MMC0_D1	88	DSI_D1_N	Display
19	TFCARD_D2	MMC0_D2	89	GND	Power GND
20	TFCARD_D3	MMC0_D3	90	BANK2_VDDIO	BANK2 IO Reference voltage
21	TFCARD_CLK	MMC0_CLK	91	GPIO26	MMC1_CLK/PDM_CLK
22	TFCARD_CMD	MMC0_CMD	92	GPIO27	MMC1_CMD/PULSE_CNTR5/PDM_IN0
23	BANK4_VDDIO	BANK4 IO Reference voltage	93	GPIO28	MMC1_D0/UART3_TXD/PDM_IN1
24	GPIO50	UART3_TXD/IIC2_SCL/QSPI0_CS4	94	GPIO29	MMC1_D1/UART3_RXD/3D_CTRL_IN
25	GPIO51	UART3_RXD/IIC2_SDA/QSPI0_CS3	95	GPIO30	MMC1_D2/UART3_RTS/3D_CTRL_OUT1
26	GPIO52	UART3_RTS/PWM4/IIC3_SCL	96	GPIO31	MMC1_D3/UART3_CTS/3D_CTRL_OUT2
27	GPIO53	UART3_CTS/PWM5/IIC3_SDA	97	GPIO32	IIC0_SCL/IIS_CLK/UART3_TXD
28	GPIO54	QSPI0_CS0/MMC1_CMD/PWM0	98	GPIO33	IIC0_SDA/IIS_WS/UART3_RXD
29	GPIO55	QSPI0_CLK/MMC1_CLK/PWM1	99	GPIO34	IIC1_SCL/IIS_D_IN0/PDM_IN3/UART3_RTS
30	GPIO56	QSPI0_D0/MMC1_D0/PWM2	100	GPIO35	IIC1_SDA/IIS_D_OUT0/PDM_IN1/UART3_CTS
31	GPIO57	QSPI0_D1/MMC1_D1/PWM3	101	GPIO36	IIC3_SCL/IIS_D_IN1/PDM_IN2/UART4_TXD
32	GPIO58	QSPI0_D2/MMC1_D2/PWM4	102	GPIO37	IIC3_SDA/IIS_D_OUT1/PDM_IN0/UART4_RXD
33	GPIO59	QSPI0_D3/MMC1_D3/PWM5	103	BANK5_VDDIO	BANK5 IO Reference voltage
34	GPIO60	PWM0/IIC0_SCL/QSPI0_CS2 /HSYNC1	104	GPIO62	M_CLK2/UART3_DE
35	GPIO61	PWM1/IIC0_SDA/QSPI0_CS1 /VSYNC1	105	GPIO63	M_CLK3/UART3_RE
36	GND	Power GND	106	GND	Power GND
37	USB1_N	USB1-	107	BANK0_VDDIO	BANK0 IO Reference voltage
38	USB1_P	USB1+	108	GPIO2	JTAG_TCK/PULSE_CNTR0
39	USB1_ID	USB1 ID	109	GPIO3	JTAG_TDI/PULSE_CNTR1/UART1_TXD
40	USB0_P	USB0+	110	GPIO4	JTAG_TDO/PULSE_CNTR2/UART1_RXD
41	USBO_N	USB0-	111	GPIO5	JTAG_TMS/PULSE_CNTR3/UART2_TXD
42	USBO_ID	USB0 ID	112	GPIO6	JTAG_TMS/PULSE_CNTR3/UART2_RXD
43	ADC0	ADC0/range 1.8V	113	GPIO7	PWM2/IIC4_SCL
44	ADC1	ADC1/range 1.8V	114	GPIO8	PWM3/IIC4_SDA
45	ADC2	ADC2/range 1.8V	115	GPIO9	PWM4/UART1_TXD/IIC1_SCL
46	ADC3	ADC3/range 1.8V	116	GPIO10	3D_CTRL_IN/UART1_RXD/IIC1_SDA
47	ADC4	ADC4/range 1.8V	117	GPIO11	3D_CTRL_OUT1/UART2_TXD/IIC2_SCL
48	ADC5	ADC5/range 1.8V	118	GPIO12	3D_CTRL_OUT2/UART2_RXD/IIC2_SDA
49	GND	Power GND	119	GPIO23	M_CLK1
50	MIC_BIAS	Microphone power supply/1.8V	120	BOOT0	MMC0 Boot default
51	MIC_NL	MIC/L-	121	BOOT1	MMC0 BOOT default
52	MIC_PL	MIC/L+	122	RSTN	Reset/1.8V
53	MIC_NR	MIC/R-	123	BANK3_VDDIO	BANK3 IO Reference voltage
54	MIC_PR	MIC/R+	124	GPIO38	UART0_TXD/QSPI1_CS0/HSYNC0
55	HP_OUTL	Audio/L	125	GPIO39	UART0_RXD/QSPI1_CLK/VSYNC0
56	HP_OUTR	Audio/R	126	GPIO40	UART1_TXD/IIC1_SCL/QSPI1_D0
57	GND	Power GND	127	GPIO41	UART1_RXD/IIC1_SDA/QSPI1_D1
58	CSI2_CLK_P	CSI2/Camera	128	GPIO42	UART1_RXD/UART1_RTS/PWM0/QSPI1_D2
59	CSI2_CLK_N	CSI2/Camera	129	GPIO43	UART1_CTS/PWM1/QSPI1_D3
60	CSI2_D4_N	CSI2/Camera	130	GPIO44	UART2_TXD/IIC3_SCL/SPI2AXI_CLK
61	CSI2_D4_P	CSI2/Camera	131	GPIO45	UART2_RXD/IIC3_SDA/SPI2AXI_CS
62	CSI2_D5_P	CSI2/Camera	132	GPIO46	UART2_RTS/PWM2/IIC4_SCL
63	CSI2_D5_N	CSI2/Camera	133	GPIO47	UART2_CTS/PWM3/IIC4_SDA
64	GND	Power GND	134	GPIO48	UART4_TXD/IIC0_SCL/SPI2AXI_DIN
65	CSI0_D1_N	CSI0/Camera	135	GPIO49	UART4_RXD/IIC0_SDA/SPI2AXI_DOUT
66	CSI2_D1_P	CSI0/Camera	136	BANK1_VDDIO	BANK1 IO Reference voltage
67	CSI2_CLK_N	CSI0/Camera	137	GPIO14	OSPI_CS/QSPI0_CS0
68	CSI2_CLK_P	CSI0/Camera	138	GPIO15	OSPI_CLK/QSPI0_CLK
69	CSI2_D0_P	CSI0/Camera	139	GPIO16	OSPI_D0/QSPI1_CS4/QSPI0_D0
70	CSI2_D0_N	CSI0/Camera	140	GPIO17	OSPI_D1/QSPI1_CS3/QSPI0_D1

Size

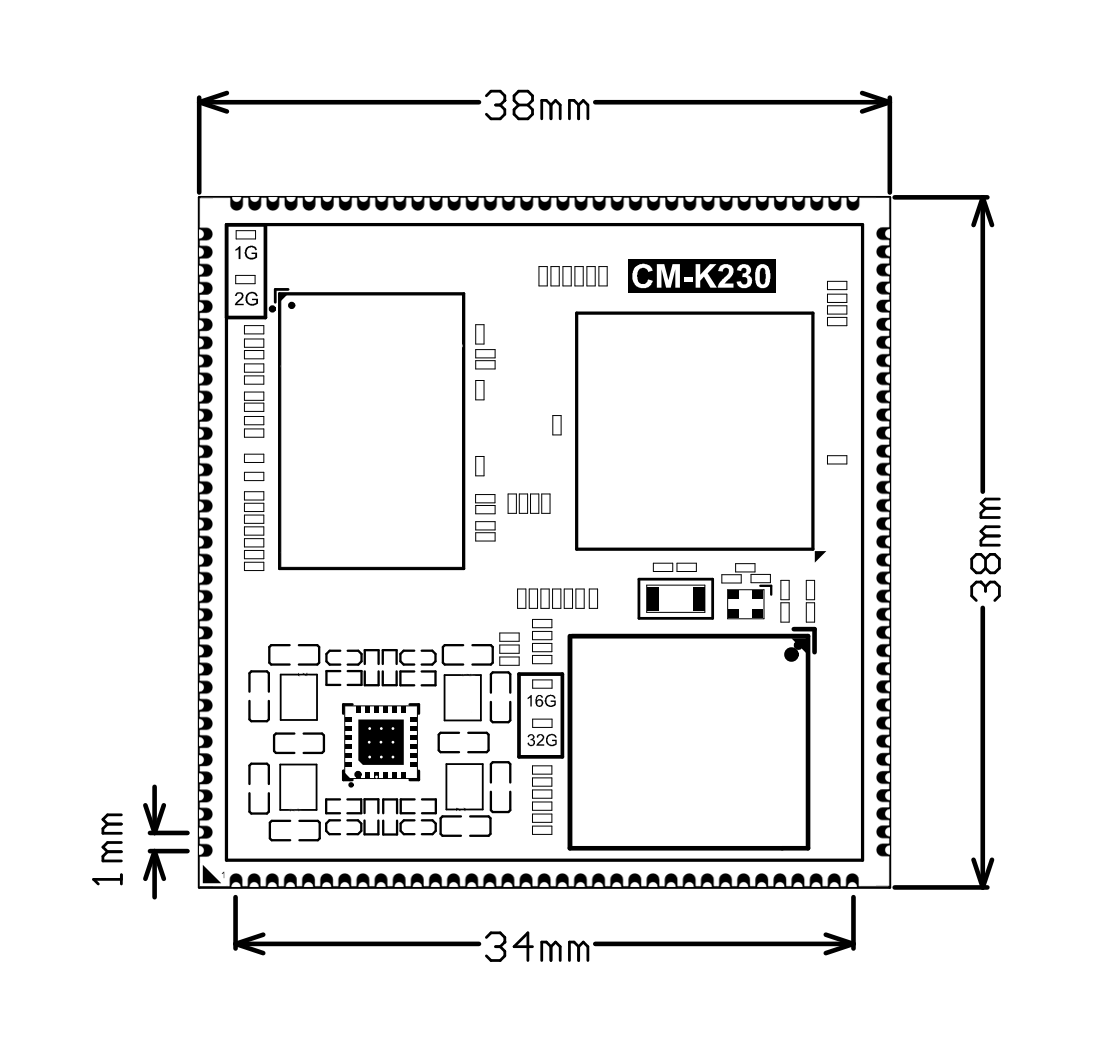

CM-K230 Size

Recommended package

CM-K230 Base Board

Reference project for base PCB: Click to Open>>

The CM-K230 core board kit LCD and camera assembly is shown in the picture below. All ribbon cables with gold fingers facing down are installed.

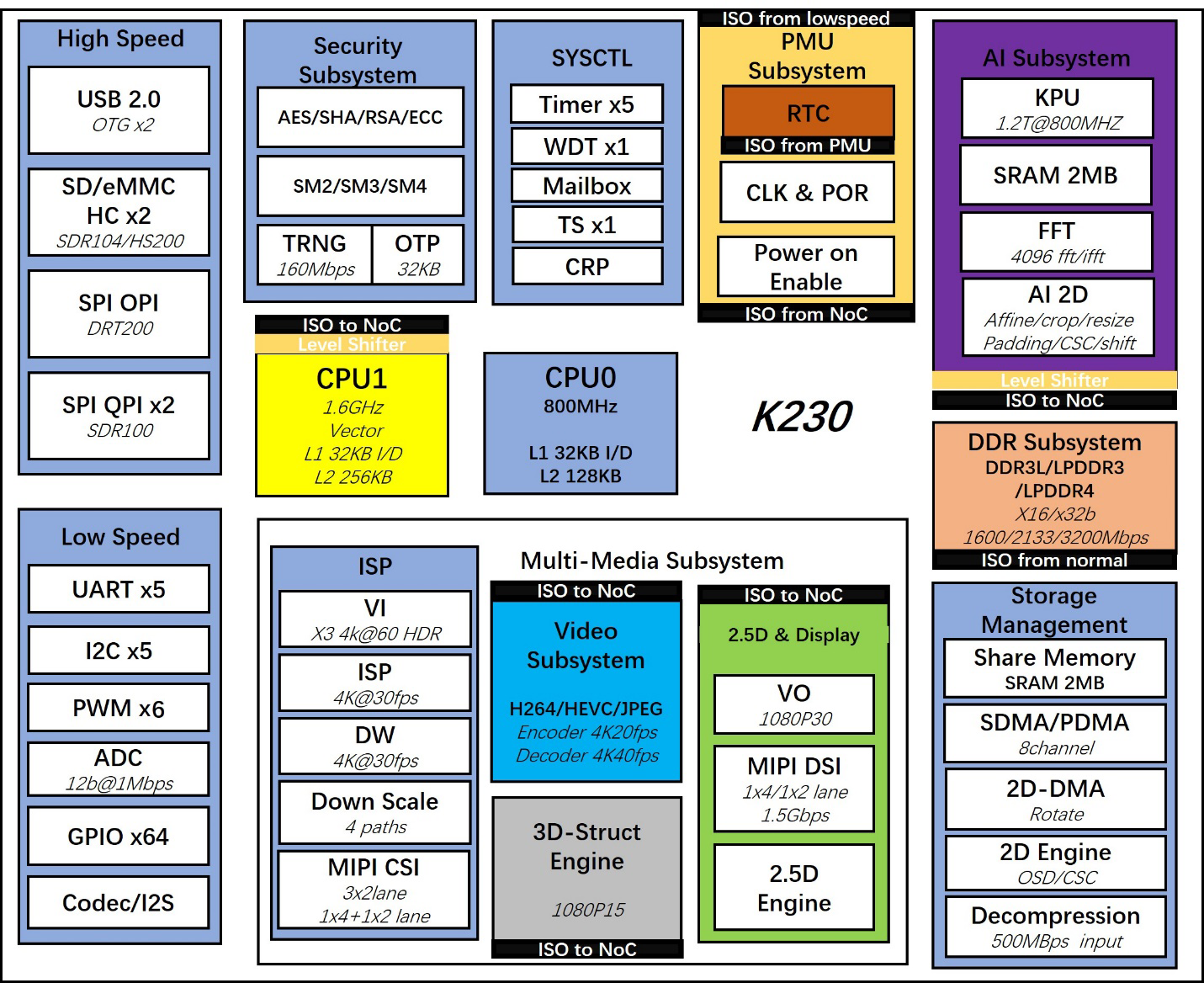

K230 Chip Parameters

K230 Chip Parameters
CPU	● CPU1: RISC-V , 1.6GHz, 32KB I-cache, 32KB D-cache, 256KB L2 Cache, 128bit RVV 1.0 ● CPU0: RISC-V , 800MHz, 32KB I-cache, 32KB D-cache, 128KB L2 Cache
KPU	6TOPS Equivalence，Support INT8 & INT16 Typical network performance： Resnet50 ≥ 85fps @ INT8；Mobilenet_v2 ≥ 670fps @ INT8；YOLO V5s ≥ 38fps @ INT8
DPU	3D structured light depth engine, supports up to 1920x1080
VPU	H.264 and H.265 video codec, suports up to 4096x4096Encoder Encoder performance：4K@20fps Decoder performance：4K@40fps JEPG codec：supports up to 8K(8192x8192)
Image Input	Support 3 Interfaces MIPI CSI input：1x4 lane+1x2 lane or 3x2 lane
Display Output	1 x MIPI DSI (1x4lane or 1x2lane), up to 1920x1080
Peripheral	● 5 x UART ● 5 x I2C ● 1 x I2S ● 6 x PWM ● 64 x GPIO + 8 x PMU GPIO ● 2 x USB 2.0 OTG ● 2 x SDxC: SD3.0, EMMC 5.0 ● 3 x SPI: 1 x OSPI + 2 x QSPI ● Timer / RTC / WDT
