人脸追踪
提示
本例程请使用01Studio资料包 2025-7-22 v1.3-70新版本镜像。
前言
在前两节我们学习了二维舵机云台舵机控制和PID控制原理知识,本节就来整合一下实现二维舵机云台人脸追踪功能。
实验目的

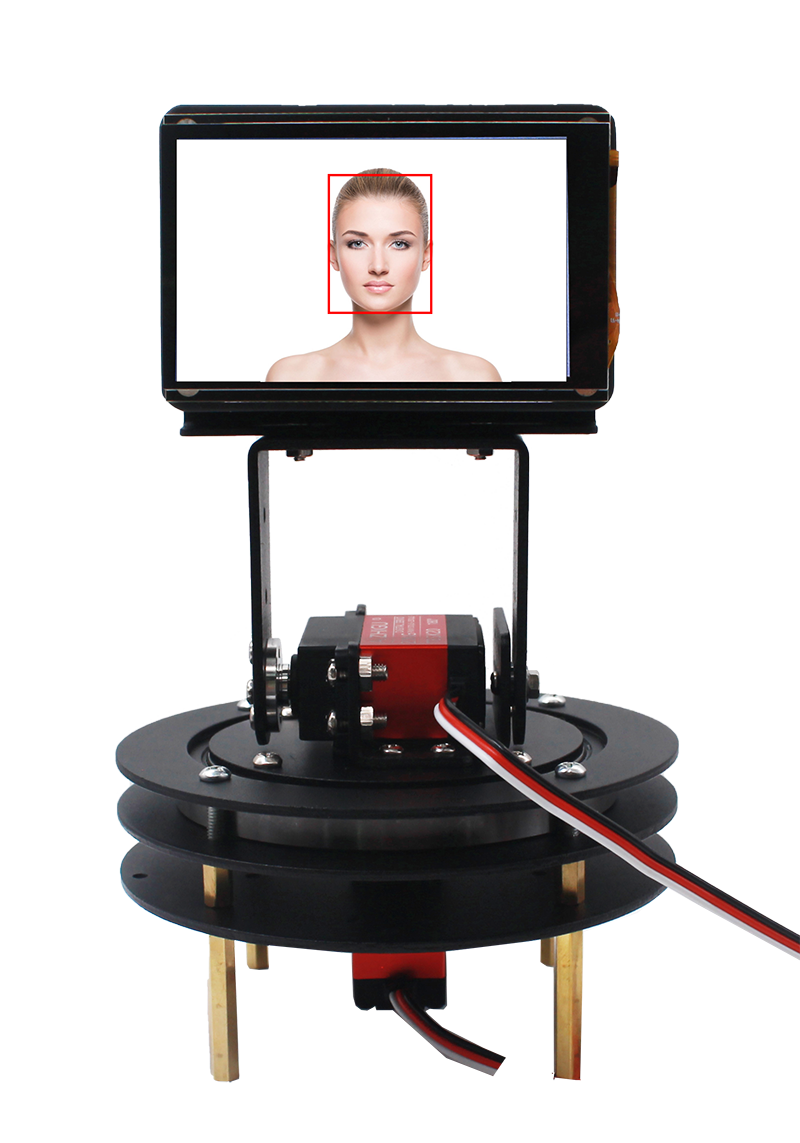

二维舵机云台追踪人脸,让人脸始终保持在显示屏正中央。
实验讲解
人脸检测教程参考 人脸检测 章节内容,这里不再重复。
二维云台舵机控制教程参考 舵机控制 章节内容,这里不再重复。
PID算法实现
关于PID控制原理可参考上一节 PID控制原理 相关教程。
下面是一段PID算法micropython实现代码:
# PID对象
class PID:
def __init__(self, p=0.05, i=0.01, d=0.01):
self.kp = p
self.ki = i
self.kd = d
self.target = 0
self.error = 0
self.last_error = 0
self.integral = 0
self.output = 0
def update(self, current_value):
self.error = self.target - current_value
#变化小于10不响应
if abs(self.error)<10:
return 0
self.integral += self.error
derivative = self.error - self.last_error
# 计算PID输出
self.output = (self.kp * self.error) + (self.ki * self.integral) + (self.kd * derivative)
self.last_error = self.error
return self.output
def set_target(self, target):
self.target = target
self.integral = 0
self.last_error = 0
综合上面知识,人脸追踪具体编程思路如下:
参考代码
'''
# Copyright (c) [2025] [01Studio]. Licensed under the MIT License.
实验名称:K230二维舵机云台(人脸追踪)
实验平台:01Studio CanMV K230 + 二维舵机云台(含pyMotors驱动板)
说明:编程实现人脸追踪,让人脸保持在显示屏中央位置。(仅支持单个人脸)
'''
#人脸视觉相关库
from media.sensor import * #导入sensor模块,使用摄像头相关接口
from libs.PipeLine import PipeLine, ScopedTiming
from libs.AIBase import AIBase
from libs.AI2D import Ai2d
import os
import ujson
from media.media import *
from media.sensor import *
from time import *
import nncase_runtime as nn
import ulab.numpy as np
import time
import utime
import image
import random
import gc
import sys
import aidemo
from media.sensor import * #导入sensor模块,使用摄像头相关接口
#舵机相关库
from machine import I2C,FPIOA
from servo import Servos
import time
#将GPIO11,12配置为I2C2功能
fpioa = FPIOA()
fpioa.set_function(11, FPIOA.IIC2_SCL)
fpioa.set_function(12, FPIOA.IIC2_SDA)
i2c = I2C(2,freq=10000) #构建I2C对象
#构建二维云台2路舵机对象
servo_x=Servos(i2c,degrees=270) #水平(X轴)使用的是270°舵机
servo_y=Servos(i2c,degrees=180) #垂直(Y轴)使用的是180°舵机
#舵机对象使用用法, 详情参看servo.py文件
#
#s.position(index, degrees=None)
#index: 0~15表示16路舵机;
#degrees: 角度,0~180/270。
#云台初始位置,水平(X轴)135°和垂直(Y轴)90°,均居中。
x_angle = 135
y_angle = 90
servo_x.position(0,x_angle) #水平(X轴)使用使用端口0,转到135°
servo_y.position(1,y_angle) #垂直(Y轴)使用使用端口1,转到90°
# PID参数 (水平和垂直方向分别设置)
class PID:
def __init__(self, p=0.05, i=0.01, d=0.01):
self.kp = p
self.ki = i
self.kd = d
self.target = 0
self.error = 0
self.last_error = 0
self.integral = 0
self.output = 0
def update(self, current_value):
self.error = self.target - current_value
#坐标变化小于10不响应
if abs(self.error)<10:
return 0
self.integral += self.error
derivative = self.error - self.last_error
# 计算PID输出
self.output = (self.kp * self.error) + (self.ki * self.integral) + (self.kd * derivative)
self.last_error = self.error
return self.output
def set_target(self, target):
self.target = target
self.integral = 0
self.last_error = 0
# 初始化2个PID控制器
x_pid = PID(p=0.01, i=0.0, d=0.001) # 水平方向PID
y_pid = PID(p=0.01, i=0.0, d=0.001) # 垂直方向PID
# 自定义人脸检测类,继承自AIBase基类
class FaceDetectionApp(AIBase):
def __init__(self, kmodel_path, model_input_size, anchors, confidence_threshold=0.5, nms_threshold=0.2, rgb888p_size=[224,224], display_size=[1920,1080], debug_mode=0):
super().__init__(kmodel_path, model_input_size, rgb888p_size, debug_mode) # 调用基类的构造函数
self.kmodel_path = kmodel_path # 模型文件路径
self.model_input_size = model_input_size # 模型输入分辨率
self.confidence_threshold = confidence_threshold # 置信度阈值
self.nms_threshold = nms_threshold # NMS(非极大值抑制)阈值
self.anchors = anchors # 锚点数据,用于目标检测
self.rgb888p_size = [ALIGN_UP(rgb888p_size[0], 16), rgb888p_size[1]] # sensor给到AI的图像分辨率,并对宽度进行16的对齐
self.display_size = [ALIGN_UP(display_size[0], 16), display_size[1]] # 显示分辨率,并对宽度进行16的对齐
self.debug_mode = debug_mode # 是否开启调试模式
self.ai2d = Ai2d(debug_mode) # 实例化Ai2d,用于实现模型预处理
self.ai2d.set_ai2d_dtype(nn.ai2d_format.NCHW_FMT, nn.ai2d_format.NCHW_FMT, np.uint8, np.uint8) # 设置Ai2d的输入输出格式和类型
# 配置预处理操作,这里使用了pad和resize,Ai2d支持crop/shift/pad/resize/affine,具体代码请打开/sdcard/app/libs/AI2D.py查看
def config_preprocess(self, input_image_size=None):
with ScopedTiming("set preprocess config", self.debug_mode > 0): # 计时器,如果debug_mode大于0则开启
ai2d_input_size = input_image_size if input_image_size else self.rgb888p_size # 初始化ai2d预处理配置,默认为sensor给到AI的尺寸,可以通过设置input_image_size自行修改输入尺寸
top, bottom, left, right = self.get_padding_param() # 获取padding参数
self.ai2d.pad([0, 0, 0, 0, top, bottom, left, right], 0, [104, 117, 123]) # 填充边缘
self.ai2d.resize(nn.interp_method.tf_bilinear, nn.interp_mode.half_pixel) # 缩放图像
self.ai2d.build([1,3,ai2d_input_size[1],ai2d_input_size[0]],[1,3,self.model_input_size[1],self.model_input_size[0]]) # 构建预处理流程
# 自定义当前任务的后处理,results是模型输出array列表,这里使用了aidemo库的face_det_post_process接口
def postprocess(self, results):
with ScopedTiming("postprocess", self.debug_mode > 0):
post_ret = aidemo.face_det_post_process(self.confidence_threshold, self.nms_threshold, self.model_input_size[1], self.anchors, self.rgb888p_size, results)
if len(post_ret) == 0:
return post_ret
else:
return post_ret[0]
# 绘制检测结果到画面上
def draw_result(self, pl, dets):
with ScopedTiming("display_draw", self.debug_mode > 0):
if dets:
pl.osd_img.clear() # 清除OSD图像
for det in dets:
# 将检测框的坐标转换为显示分辨率下的坐标
x, y, w, h = map(lambda x: int(round(x, 0)), det[:4])
x = x * self.display_size[0] // self.rgb888p_size[0]
y = y * self.display_size[1] // self.rgb888p_size[1]
w = w * self.display_size[0] // self.rgb888p_size[0]
h = h * self.display_size[1] // self.rgb888p_size[1]
#画十字交叉
x_center = int(x + w/2)
y_center = int(y + h/2)
pl.osd_img.draw_cross(x_center, y_center, color=(255, 255, 0, 255), thickness=2) # 绘制矩形框
pl.osd_img.draw_rectangle(x, y, w, h, color=(255, 255, 0, 255), thickness=2) # 绘制矩形框
return x_center,y_center
else:
pl.osd_img.clear()
return None,None
# 获取padding参数
def get_padding_param(self):
dst_w = self.model_input_size[0] # 模型输入宽度
dst_h = self.model_input_size[1] # 模型输入高度
ratio_w = dst_w / self.rgb888p_size[0] # 宽度缩放比例
ratio_h = dst_h / self.rgb888p_size[1] # 高度缩放比例
ratio = min(ratio_w, ratio_h) # 取较小的缩放比例
new_w = int(ratio * self.rgb888p_size[0]) # 新宽度
new_h = int(ratio * self.rgb888p_size[1]) # 新高度
dw = (dst_w - new_w) / 2 # 宽度差
dh = (dst_h - new_h) / 2 # 高度差
top = int(round(0))
bottom = int(round(dh * 2 + 0.1))
left = int(round(0))
right = int(round(dw * 2 - 0.1))
return top, bottom, left, right
# 显示模式,可以选择"hdmi"、"lcd3_5"(3.5寸mipi屏)和"lcd2_4"(2.4寸mipi屏)
display="lcd3_5"
if display=="hdmi":
display_mode='hdmi'
display_size=[1920,1080]
rgb888p_size = [1920, 1080]
elif display=="lcd3_5":
display_mode= 'st7701'
display_size=[800,480]
rgb888p_size = [1920, 1080]
elif display=="lcd2_4":
display_mode= 'st7701'
display_size=[640,480]
rgb888p_size = [1280, 960] #2.4寸屏摄像头画面比例为4:3
# 设置模型路径和其他参数
kmodel_path = "/sdcard/examples/kmodel/face_detection_320.kmodel"
# 其它参数
confidence_threshold = 0.5
nms_threshold = 0.2
anchor_len = 4200
det_dim = 4
anchors_path = "/sdcard/examples/utils/prior_data_320.bin"
anchors = np.fromfile(anchors_path, dtype=np.float)
anchors = anchors.reshape((anchor_len, det_dim))
# 初始化PipeLine,用于图像处理流程
pl = PipeLine(rgb888p_size=rgb888p_size, display_size=display_size, display_mode=display_mode)
pl.create(Sensor(width=rgb888p_size[0], height=rgb888p_size[1])) # 创建PipeLine实例
# 初始化自定义人脸检测实例
face_det = FaceDetectionApp(kmodel_path, model_input_size=[320, 320], anchors=anchors, confidence_threshold=confidence_threshold, nms_threshold=nms_threshold, rgb888p_size=rgb888p_size, display_size=display_size, debug_mode=0)
face_det.config_preprocess() # 配置预处理
# 设置目标位置 (图像中心)
x_pid.set_target(display_size[0]/2)
y_pid.set_target(display_size[1]/2)
clock = time.clock()
###############
## 这里编写代码
###############
while True:
clock.tick()
img = pl.get_frame() # 获取当前帧数据
res = face_det.run(img) # 推理当前帧
# 当检测到人脸时:
if res:
#print(res)
x_center,y_center = face_det.draw_result(pl, res) # 绘制结果并返回中心X,Y坐标
# 更新水平(X轴)舵机角度
x_output = x_pid.update(x_center)
x_angle = round(max(0, min(abs(x_angle + x_output),270)),1) #限制角度0-270°
servo_x.position(0,x_angle)
# 更新垂直(Y轴)舵机角度
y_output = y_pid.update(y_center)
y_angle = round(max(0, min(abs(y_angle - y_output),180)),1) #限制角度0-180°
servo_y.position(1,y_angle)
else:
pl.osd_img.clear() # 清除OSD图像
pl.show_image() # 显示结果
gc.collect() # 垃圾回收
print(clock.fps()) #打印帧率
这里对关键代码进行讲解:
- 设置显示方式:
通过改变
display
的参数选择"hdmi"、"lcd3_5"(3.5寸mipi屏)和"lcd2_4"(2.4寸mipi屏)显示方式,这会改变中心坐标。
...
# 显示模式,可以选择"hdmi"、"lcd3_5"(3.5寸mipi屏)和"lcd2_4"(2.4寸mipi屏)
display="lcd3_5"
if display=="hdmi":
display_mode='hdmi'
display_size=[1920,1080]
rgb888p_size = [1920, 1080]
elif display=="lcd3_5":
display_mode= 'st7701'
display_size=[800,480]
rgb888p_size = [1920, 1080]
elif display=="lcd2_4":
display_mode= 'st7701'
display_size=[640,480]
rgb888p_size = [1280, 960] #2.4寸屏摄像头画面比例为4:3
...
- 初始化PID控制器:
可通过修改p,i,d数值改变追踪效果。i在本实验中用不到配置默认0即可。
# 初始化2个PID控制器
x_pid = PID(p=0.01, i=0.0, d=0.001) # 水平方向PID
y_pid = PID(p=0.01, i=0.0, d=0.001) # 垂直方向PID
- 设置目前期望的位置
由于01Studio有不同尺寸的显示屏,这里以800x480的3.5寸显示屏为例,中心坐标为(400,240), 根据前面display值自动完成设置。
# 设置目标位置 (图像中心)
x_pid.set_target(display_size[0]/2)
y_pid.set_target(display_size[1]/2)
- 主函数代码:
在循环中一直检测人脸,然后返回人脸的中心X,Y坐标值,将这2个值喂给PID算法,根据算法返回值调整舵机位置。
...
###############
## 这里编写代码
###############
while True:
clock.tick()
img = pl.get_frame() # 获取当前帧数据
res = face_det.run(img) # 推理当前帧
# 当检测到人脸时:
if res:
#print(res)
x_center,y_center = face_det.draw_result(pl, res) # 绘制结果并返回中心X,Y坐标
# 更新水平(X轴)舵机角度
x_output = x_pid.update(x_center)
x_angle = round(max(0, min(abs(x_angle + x_output),270)),1) #限制角度0-270°
servo_x.position(0,x_angle)
# 更新垂直(Y轴)舵机角度
y_output = y_pid.update(y_center)
y_angle = round(max(0, min(abs(y_angle - y_output),180)),1) #限制角度0-180°
servo_y.position(1,y_angle)
else:
pl.osd_img.clear() # 清除OSD图像
pl.show_image() # 显示结果
gc.collect() # 垃圾回收
print(clock.fps()) #打印帧率
...
实验结果
本例程测试头像,另存为图片到本地即可使用:

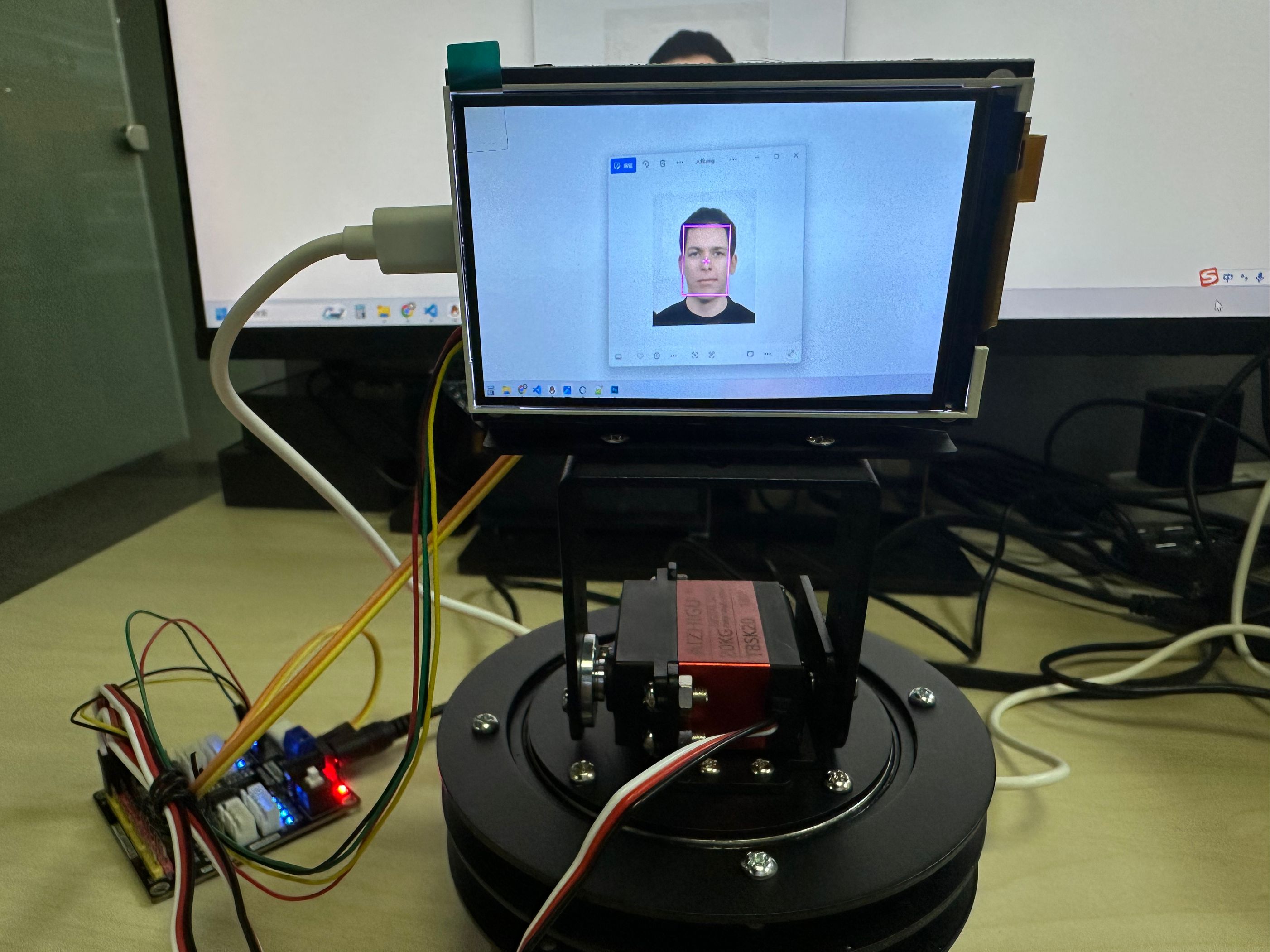

运行代码,在摄像头画面移动人脸头像,可以看到二维舵机云台实现了人脸追踪。
